Motorized Antenna Trainer (MI-AC22A)

Product Description

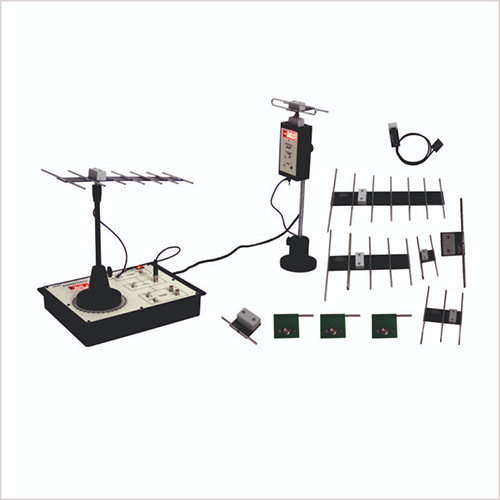

An antenna is a device that is used to convert guided electromagnetic waves into electrical signals and vice versa (i.e. either in transmitting mode or in receiving mode of operation). Mine Antena Trainer MI-AC22A is a bench-top antenna system design to demonstrate all concepts of an antenna operations. Student can learn easily about various type of antenna operation with their polar plot. This system comes with a motorized antenna unit to record radiation pattern automatically of any antenna mounted on it.

Technical Specifications:

• Waveforms : Sine
• RF Generator : 750 MHz approximately (output adjustable)
• Modulation Generator : 1 KHz approximately (output adjustable)
• Directional Coupler : Forward & Reverse (selectable)
• Matching Stub  : Slider type
• Antenna Rotation : 0-360 degree (Resolution 1degree)
• Receiving Antenna : Folded dipole with reflector
• Detector Display : Level adjustable meter
• Interconnection : BNC/2mm banana socket
• Input Line Voltage : 230V AC +/- 10% , 50Hz
